Ferrules
Acrylic Ferrules/Wire Markers

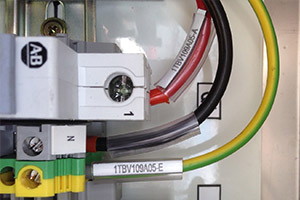

Laser marked (not printed) Acrylic Ferrule/ Wire Markers, are produced from 0.5mm, 2 ply laminate acrylic.

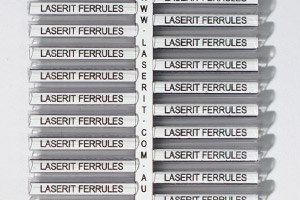

Standard white background with black text, preloaded into clear plastic carriers for ease of installation.
Please see charts below to determine the specific size ferrule and carrier required.
| Maximum Number of Characters: | Ferrule Size: |
|---|---|
| 1-5 Characters | 10mm |
| 6-9 Characters | 15mm |
| 10 Characters | 18mm |
| 10-13 Characters | 23mm |
| 14-19 Characters | 30mm |
| Carrier Type: | Suit Wire mm² |
|---|---|
| 101 | 0.14 - 1.00 |
| 102 | 0.5 - 1.5 |
| 103 | 1.0 - 2.5 |
| 104 | 2.5 - 4 |

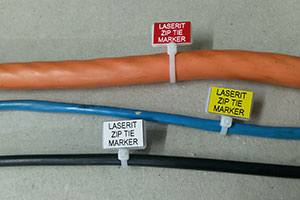

| Cable-tie type | Super large |
